Product marketing loves the phrase "aero-grade aluminum" — it sounds like a specification, but it's actually a family of alloys, not a single material. Which alloy matters. A 6061-T6 grab handle behaves differently from a 7075-T6 structural bracket, which behaves very differently from a Grade-5 titanium pen. This article covers the three material families that show up across GPCA's catalog (cast aluminum, aero-grade aluminum, Grade-5 titanium), what their tensile strengths and corrosion profiles actually mean, and why the material choice on each product line is a deliberate engineering decision — not a marketing buzzword. Educational — not materials-engineering consultation.
Cast aluminum — the entry tier
Cast aluminum is aluminum melted and poured into a mold. The casting process is cheap, produces complex shapes easily, and handles high-volume production well. Common cast alloys (A356, 413, 380) have tensile strengths in the 200–300 MPa range.
The tradeoff: cast aluminum has variable grain structure because of the cooling process. This makes it weaker than wrought (forged or rolled) aluminum of similar alloy composition, and prone to porosity — tiny internal voids that reduce fatigue life.
Where GPCA uses it: The GP-Grip LITE uses cast aluminum. It's the right call for a passenger grip handle — the 250 lb load rating is well within cast aluminum's working capacity, the complex handle geometry is trivial to cast, and the price stays accessible. Cast aluminum is not the right call for a high-stress structural bracket — different application, different alloy.
Aero-grade aluminum — 6061-T6 and 7075-T6
"Aero-grade aluminum" refers to wrought alloys used in aerospace applications. The two most common are 6061-T6 and 7075-T6. The T6 suffix means the alloy has been heat-treated and aged to a specific temper condition.
6061-T6
Tensile strength: ~310 MPa (MatWeb data sheets)
Yield strength: ~276 MPa
Density: 2.70 g/cm³
Corrosion: Excellent — forms a self-healing oxide layer, resists saltwater, doesn't require additional coating for most applications.
Machining: Very good. Welds well. Anodizes cleanly (most colored aluminum products are 6061).
Where used: Bicycle frames, aerospace structural components, automotive accessories, marine fittings. The workhorse alloy of aerospace-grade aluminum.
7075-T6
Tensile strength: ~572 MPa (nearly 2x 6061-T6)
Yield strength: ~503 MPa
Density: 2.81 g/cm³
Corrosion: Inferior to 6061 — requires coating or anodizing for saltwater / long-term outdoor exposure.
Machining: Good, but welds poorly. Heat from welding can degrade the T6 temper. More expensive raw stock than 6061.
Where used: Aircraft structural components, high-load bike frames, firearms, high-stress automotive brackets. Use cases where the 2x tensile strength is worth the higher cost + welding limitations.
How GPCA chooses between them

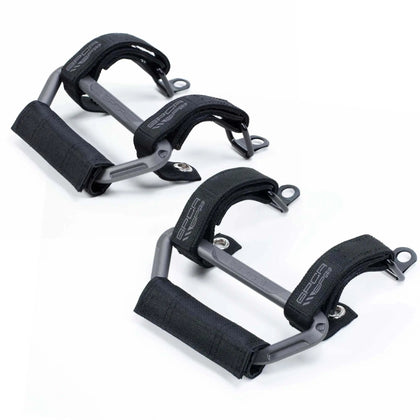

Product pages describe "aero-grade aluminum" on the GP-Grip PRO and Foldable Color lines — which typically corresponds to 6061-T6 for this category (load rating, anodizing for color, saltwater / off-road corrosion resistance). The GP-Grip AIR's revised geometry also corresponds to an aerospace-grade wrought alloy — GPCA has not publicly specified 6061 vs 7075 on the product page, so treat as brand-stated "aero-grade."
For EDC pen bodies and some high-stress components, 7075-T6 or 2024-T3 alloys appear in the maker-EDC category because the higher tensile strength / hardness matters more than weld-ability. GPCA's specific alloy selection on each part isn't publicly broken out — the brand's positioning is functional ("aero-grade") rather than technical ("6061-T6 or 7075-T6").
Grade-5 titanium — Ti-6Al-4V
The titanium grade used in EDC and aerospace is Grade 5 (Ti-6Al-4V) — 90% titanium, 6% aluminum, 4% vanadium.
Tensile strength: ~895 MPa (1.5x 7075-T6, 2.9x 6061-T6)
Yield strength: ~828 MPa
Density: 4.43 g/cm³ (heavier than aluminum, but still 55% the density of steel)
Corrosion: Exceptional — titanium's oxide layer is more stable than aluminum's. Handles chlorine, saltwater, and battery acid without coating. Biocompatible (which is why implants are titanium).
Machining: Difficult. Titanium work-hardens aggressively and eats tooling. Raw stock is ~10x the price of aluminum.

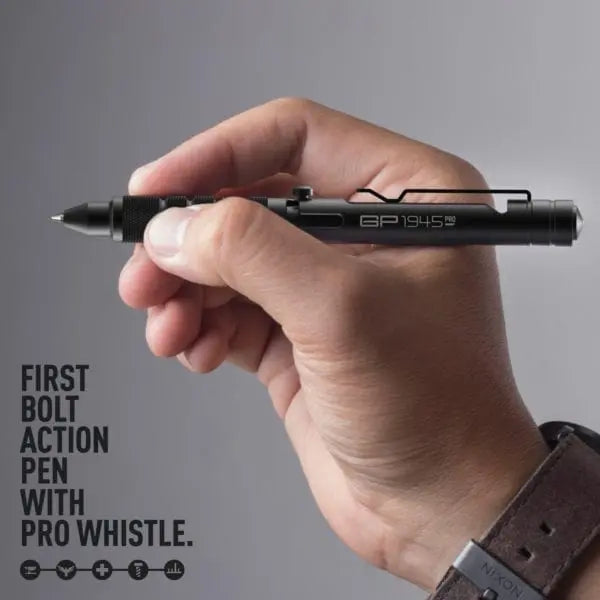

Where GPCA uses it: The GP-1945 Bolt-Action Pen body is titanium. So are the GPCA Titanium Guitar Picks. This is the right call for EDC items that live in pockets (pens, picks) or touch acidic / sweaty skin for years — titanium simply doesn't degrade on that timeline, while aluminum will show pitting from chloride exposure within 2–3 years of heavy pocket carry.
The material-to-use-case map
| Material | Tensile | Density | Corrosion | Cost | Use case |
|---|---|---|---|---|---|
| Cast aluminum (A356/413) | 200–300 MPa | 2.7 g/cm³ | Good (coated) | $ | Complex-shape passenger grips (GP-Grip LITE) |
| 6061-T6 wrought Al | 310 MPa | 2.7 g/cm³ | Excellent | $$ | Structural aero-grade (GP-Grip PRO) |
| 7075-T6 wrought Al | 572 MPa | 2.81 g/cm³ | Moderate (needs coating) | $$$ | High-stress structural, some EDC |
| Grade-5 titanium (Ti-6Al-4V) | 895 MPa | 4.43 g/cm³ | Exceptional | $$$$$ | Pocket EDC (GP-1945 pen, guitar picks) |
Why this matters for a Jeep owner
If you're buying a grab handle for a 2024+ Wrangler, the material question is downstream of the fitment question (GP-Grip AIR is required for airbag compatibility). The material on the AIR is aero-grade wrought aluminum, which is appropriate for a 250 lb passenger-grip application and will survive the full vehicle lifespan of a Jeep (15+ years of outdoor duty) without corrosion or failure.
If you're buying an EDC pen, the titanium question is the one that matters. A $40 aluminum pen will show anodization wear and corner-dings within 6–12 months of daily pocket carry. A titanium pen (like the GP-1945) will still look new at 5+ years of the same duty. For a tool that lives in your pocket, the 10x material cost translates directly to multi-year service life.
Where marketing gets sloppy
"Aircraft-grade" is not a regulatory term. Both 6061-T6 and 7075-T6 are used in aircraft; so is 2024-T3. Some cheap brands apply the phrase to alloys like 5052 or cast aluminum, which is technically defensible but misleading. Look for the specific alloy designation if you're comparison-shopping.
"Titanium" without a grade is usually Grade 1 or 2. Grades 1–4 are commercially-pure titanium, softer than Grade 5 (which contains Al + V alloying elements). If a product says "titanium" without a grade, assume it's not Grade 5 unless stated otherwise. Grade 2 is fine for non-structural applications; Grade 5 is the one with the aerospace strength numbers.
"Anodized aluminum" doesn't tell you the base alloy. Anodizing is a surface treatment, not a base material. You can anodize 6061 or 5052 equally; the base alloy determines structural properties.
The quick version
- Cast aluminum → cheap, complex shapes, moderate strength. Right for passenger-grip applications (GP-Grip LITE).
- 6061-T6 aero-grade → tensile 310 MPa, excellent corrosion resistance, anodizes cleanly. Workhorse alloy for structural aerospace + automotive aftermarket.
- 7075-T6 aero-grade → tensile 572 MPa (2x 6061), but welds poorly and needs coating for corrosion. Used where raw strength matters more than manufacturability.
- Grade-5 titanium (Ti-6Al-4V) → tensile 895 MPa, near-immortal corrosion resistance, 5–10x the cost of aluminum. Right for pocket EDC with multi-year wear lifetimes.
- "Aircraft-grade" / "aero-grade" are marketing terms covering a range of alloys. Specific alloy designation is the clearest comparison.
- GPCA's catalog uses each material where it fits: cast aluminum on LITE, aero-grade wrought on PRO/AIR, Grade-5 titanium on EDC pens + picks.
Related reading
- GP-Grip PRO vs AIR vs Universal — which Jeep handle fits your generation.

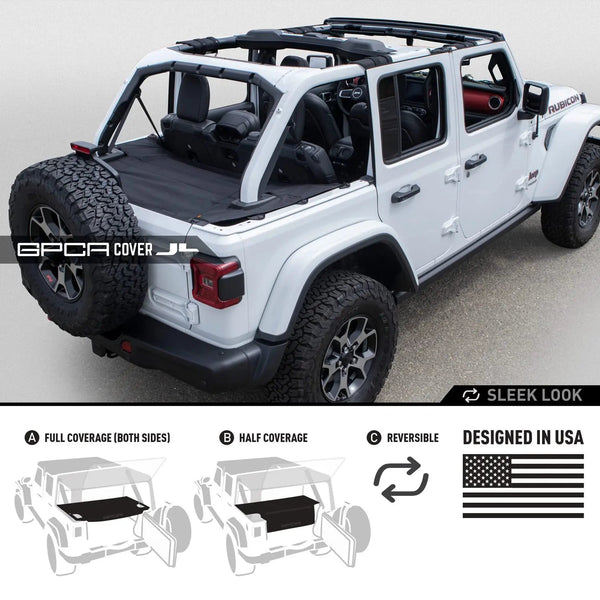

- Wrangler topless + GPCA Cargo Cover — the Freedom Pack install guide.
Shop by material
- GP-Grip PRO · aero-grade aluminum
- GP-1945 Pen · Grade-5 titanium
- GPCA Titanium Guitar Pick Set
- Full GPCA catalog
References
- ASTM B209 — Aluminum and Aluminum-Alloy Sheet and Plate — ASTM International (accessed 2026-04-24)
- ASTM B348 — Titanium and Titanium Alloy Bars — ASTM International (accessed 2026-04-24)
- The Aluminum Association — ANSI H35.1 Designations — The Aluminum Association (accessed 2026-04-24)
- Matweb — 6061-T6 vs 7075-T6 Aluminum Data Sheets — MatWeb Materials Database (accessed 2026-04-24)
