If you've ever looked at a $40 Bluetooth OBD2 dongle and a $500 professional scanner and wondered what the other $460 actually buys you, the answer has one word: bi-directional. Here's what that means, when it matters, and when a budget reader is actually the right tool.
What 'bi-directional' actually means
A basic OBD2 reader goes one direction: it asks the car for data. The engine control module answers. That's it. You get codes, freeze frames, live sensor values. Very useful — but fundamentally a monitoring tool.
A bi-directional scanner can also send commands to the car: turn on this cooling fan, cycle that solenoid, actuate the EVAP purge valve, apply and release the electronic parking brake. In diagnostic language, these are called active tests. The bi-directional tool is testing components by telling them to do something and watching what happens.
Technically, bi-directional functionality is defined outside standard OBD2 (Modes 01–0A, per SAE J1979). Manufacturers implement it through ISO 14229 Unified Diagnostic Services or older proprietary protocols. That's why you need a scanner that supports your vehicle's specific protocols — not just generic OBD2.
When basic OBD2 is all you need
A $40 Bluetooth dongle or a $100 handheld is enough if you only need to:
- Read and clear check-engine codes
- View generic live data (RPM, coolant temp, fuel trim, MAF, O2 sensor voltages)
- Check emissions readiness monitors before an inspection
- Pull VIN and basic calibration ID
If that's your entire use case, a pro scanner is overkill. The OBD2 code-reading workflow we cover in the main guide works fine with budget tools.
When you need bi-directional — five real-world jobs
1. Replace brake pads on a car with an electronic parking brake
Modern cars with electronic parking brakes (EPBs) require the brake caliper to be retracted electronically. Push the piston back manually and you'll damage the actuator. A bi-directional scanner sends the "service mode" command, the EPB retracts, you do the pads, the scanner re-engages. Without it: tow to a dealer.
2. Transmission fluid service on a modern automatic
Modern automatics rely on adaptive shift maps learned over time. After a fluid change, most vehicles require a transmission adaptation reset to clear the old shift points and let the TCU relearn. Budget scanners can't do this; bi-directional scanners can.
3. Diagnose a misfire by cylinder
A bi-directional scanner can command the ECM to cut fuel to a single cylinder one at a time. If killing cylinder 3 produces no change in engine roughness, cylinder 3 was already misfiring. That's a 3-minute diagnosis that would otherwise take swapping coils and plugs.
4. Active-test a cooling fan, EVAP valve, or fuel pump
Suspected bad cooling fan? A bi-directional scanner tells the fan to turn on at full speed. If it doesn't spin, the fan is dead. If it spins, the problem is upstream (relay, sensor, or control logic). Without bi-directional, you're pulling relays and back-probing connectors.
5. Coding and service functions after replacement
Replace a steering-angle sensor? Most vehicles require a SAS calibration before the ABS/traction control will work. Replace a battery on a modern car? Many require a battery registration so the charging system knows the new battery's age. Replace a throttle body? Most need throttle adaptation. All bi-directional-only functions.

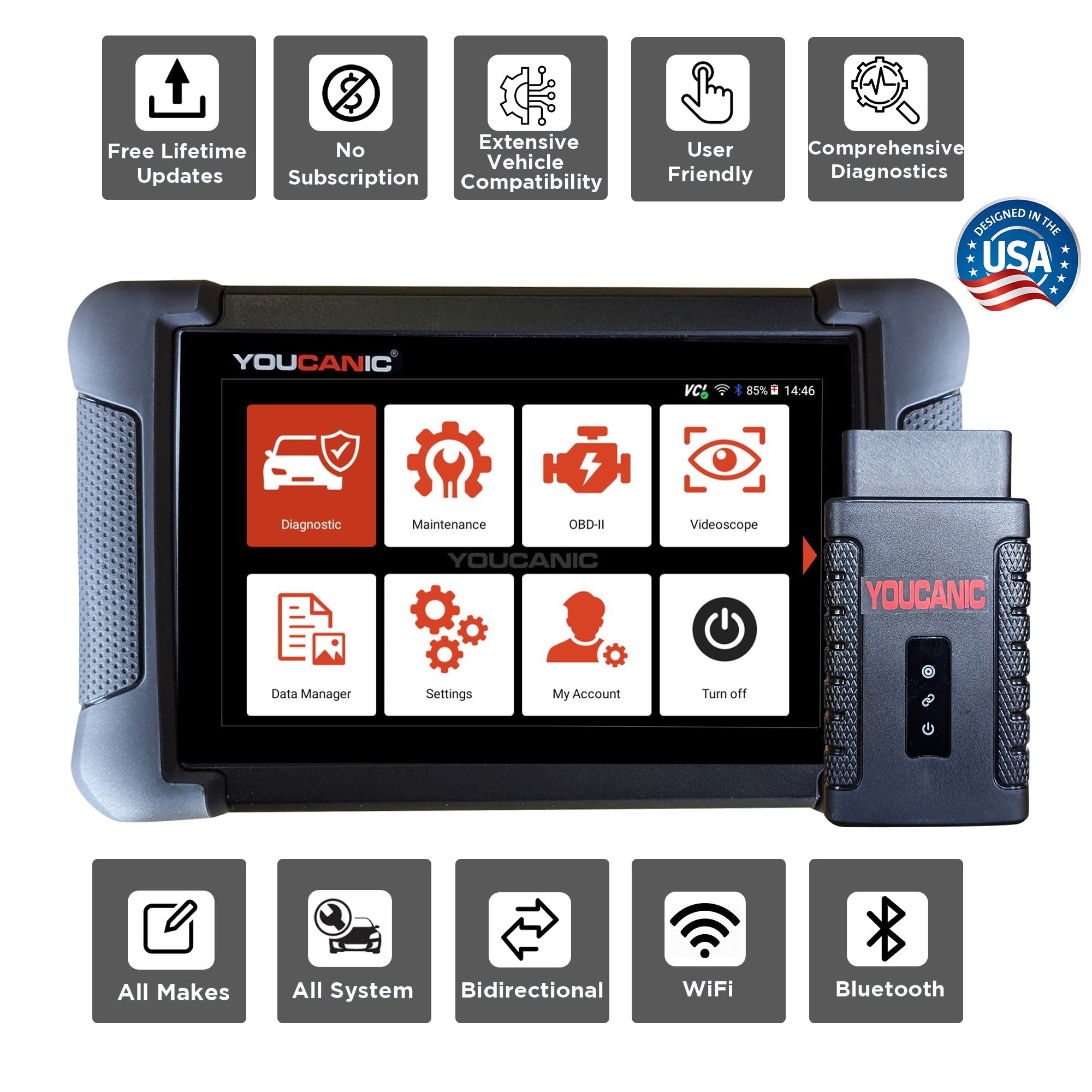

What the UCAN-II-C Pro actually does
Our flagship UCAN-II-C Pro covers:
- All 20+ vehicle systems — not just engine/trans, but ABS, airbag, climate, body, instrument cluster, etc.
- Bi-directional active tests across those systems
- Service functions — EPB retract, SAS calibration, oil reset, battery registration, TPMS relearn, DPF regen, throttle adaptation, transmission adaptation reset
- Lifetime software updates — every new vehicle-year release, no subscription
- All makes — 80+ manufacturers including US, European, Asian, and EV models

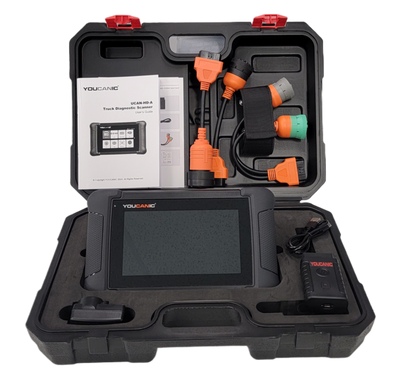

For heavy-duty diesel trucks, the UCAN-HD-A is the equivalent tool — J1939 and J1708 heavy-duty protocols with the same bi-directional depth.
The honest decision tree
- If you own one car, drive it until the warranty runs out, and only want to check codes on a rental — buy a $40 dongle. Done.
- If you do your own brake pads, fluid changes, or minor electrical work — you'll hit the bi-directional wall eventually. The $459 pays back after two shop visits avoided.
- If you own multiple vehicles, drive them past 100k miles, or have a commercial vehicle — pro scanner, no question. Lifetime updates matter when you keep cars long.
- If you're a mobile mechanic or run a small fleet — a pro scanner with bi-directional and all-system coverage isn't optional; it's the job.
Related reading
- How to read and clear OBD2 codes — the end-to-end workflow for any scanner tier.
- The 10 most common OBD2 codes — the codes you'll actually see.
The scanners we carry
- UCAN-II-C Pro — bi-directional, all systems, lifetime updates. $459.
- UCAN-HD-A Heavy Duty — J1939/J1708 diesel trucks, same bi-directional depth. $485.
- The full YOUCANIC shop
References
- SAE J1979 — E/E Diagnostic Test Modes (Mode 01–0A coverage) — SAE International (accessed 2026-04-22)
- ISO 14229 — Unified Diagnostic Services (UDS) reference — International Organization for Standardization (accessed 2026-04-22)
- ISO 15031 — OBD communication between vehicle and test equipment — International Organization for Standardization (accessed 2026-04-22)
- Bosch Automotive Handbook — Diagnostics and Service Test — Bosch Mobility Solutions (accessed 2026-04-22)
