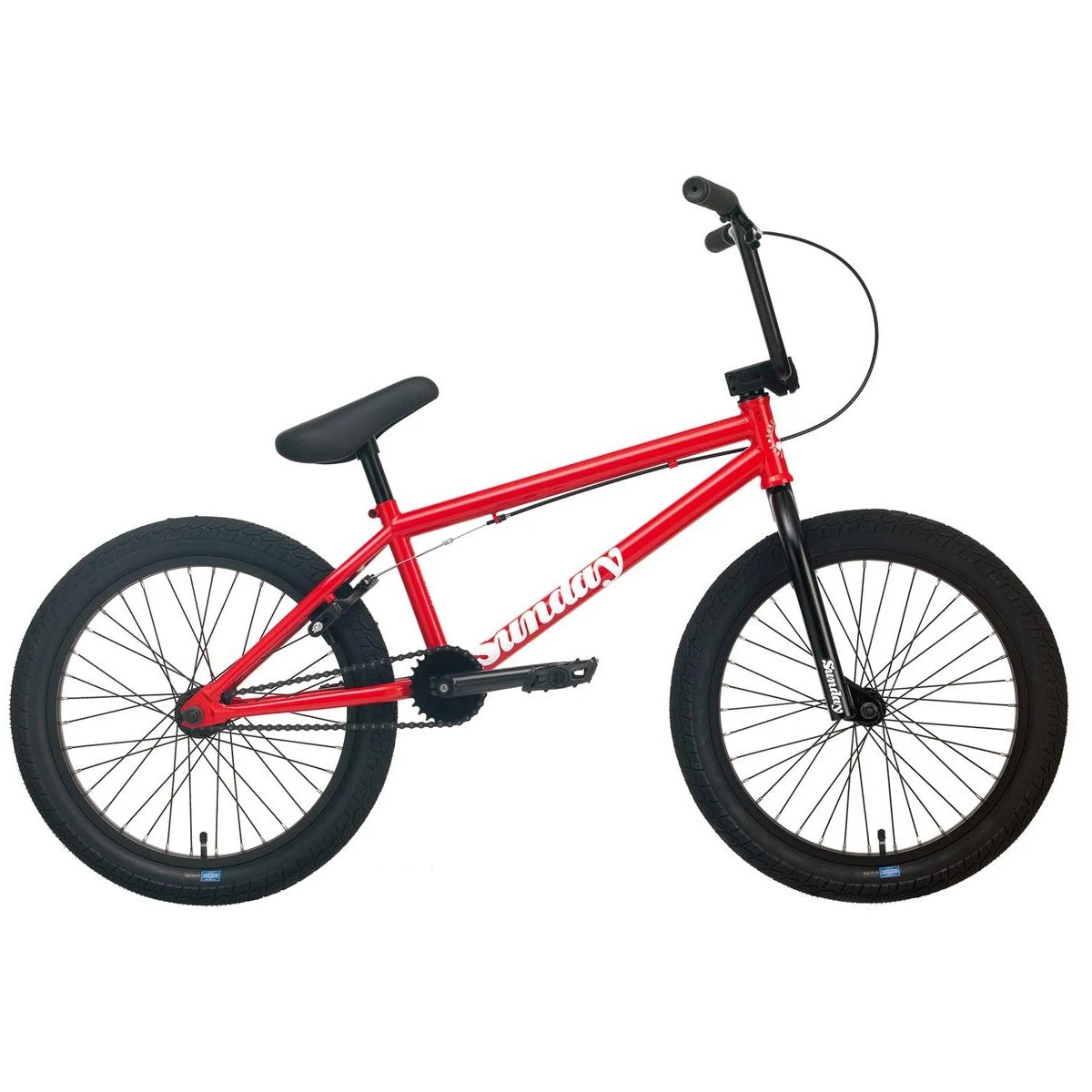

Sunday Blueprint 20″ Complete BMX Bike - Gloss Fire Engine Red
Sunday Blueprint 20″ Complete BMX Bike - Gloss Fire Engine Red
The Sunday Blueprint 20" BMX Bike is designed as an entry level bike to provide a durable ride to learn how to shred. Components such as the Odyssey Springfield brakes, FSA integrated headset, and 3-piece chromoly cranks create a bike that is reliable meaning more riding and less downtime. The Sunday Blueprint is built for beginners to promote growth and learning.
Specifications:
- Frame: Sunday Blueprint, Integrated Headtube
- Fork: Sunday Blueprint, 2-Piece Steerer Tube, Welded Pre-Load
- Bars: Sunday, 2-Piece (28.5" Width) (9" Rise) (12° Backsweep) (4° Upsweep)
- Stem: Sunday Freeze Front Load (48mm)
- Headset: FSA Integrated (1-1/8")
- Preload Cap: FSA, Aluminum
- Grips: Sunday Cornerstone
- Cranks: 3-Piece, Chromoly (160mm Length)
- Bottom Bracket: Loose Ball American (19mm)
- Pedals: Wellgo Platform, Plastic
- Chain: KMC S1
- Sprocket: Sunday S-Logo, Steel (25 Tooth)
- Front Hub: Sunday Low-Flange Loose Ball (3/8" Axle)
- Rear Hub: Sunday Cassette (14mm Axle)
- Driver: 9 Tooth
- Spokes: Steel, Black (14 Gauge)
- Front Rim: P-7X, Aluminum (20") (36 Hole)
- Rear Rim: P-7X, Aluminum (20") (36 Hole)
- Front Tire: Sunday Current (20 x 2.4")
- Rear Tire: Sunday Current (20 x 2.4")
- Seat: Sunday Badge (Combo)
- Seat Post: Combo (25.4mm)
- Seat Clamp: Integrated
- Lever: Aluminum (U-Brake Compatible)
- Brake Cable: Odyssey Quik Slic
- Brakes: Odyssey Springfield U-Brake
- Brake Mounts: Welded
- Gyro Tabs: Drilled (Not Included)
- Extras: N/A
- Color: Fire Engine Red
- Weight: 26 lbs
Frame Geometry:
- Toptube: 20"
- Headtube Angle: 75°
- Seattube Angle: 71°
- Chainstays: 13.2" - 13.5"
- BB Height: 11.5"
- Stand Over Height: 8.75"
- Sizing Guideline: 4' 10" - 5' 6" Rider Height
