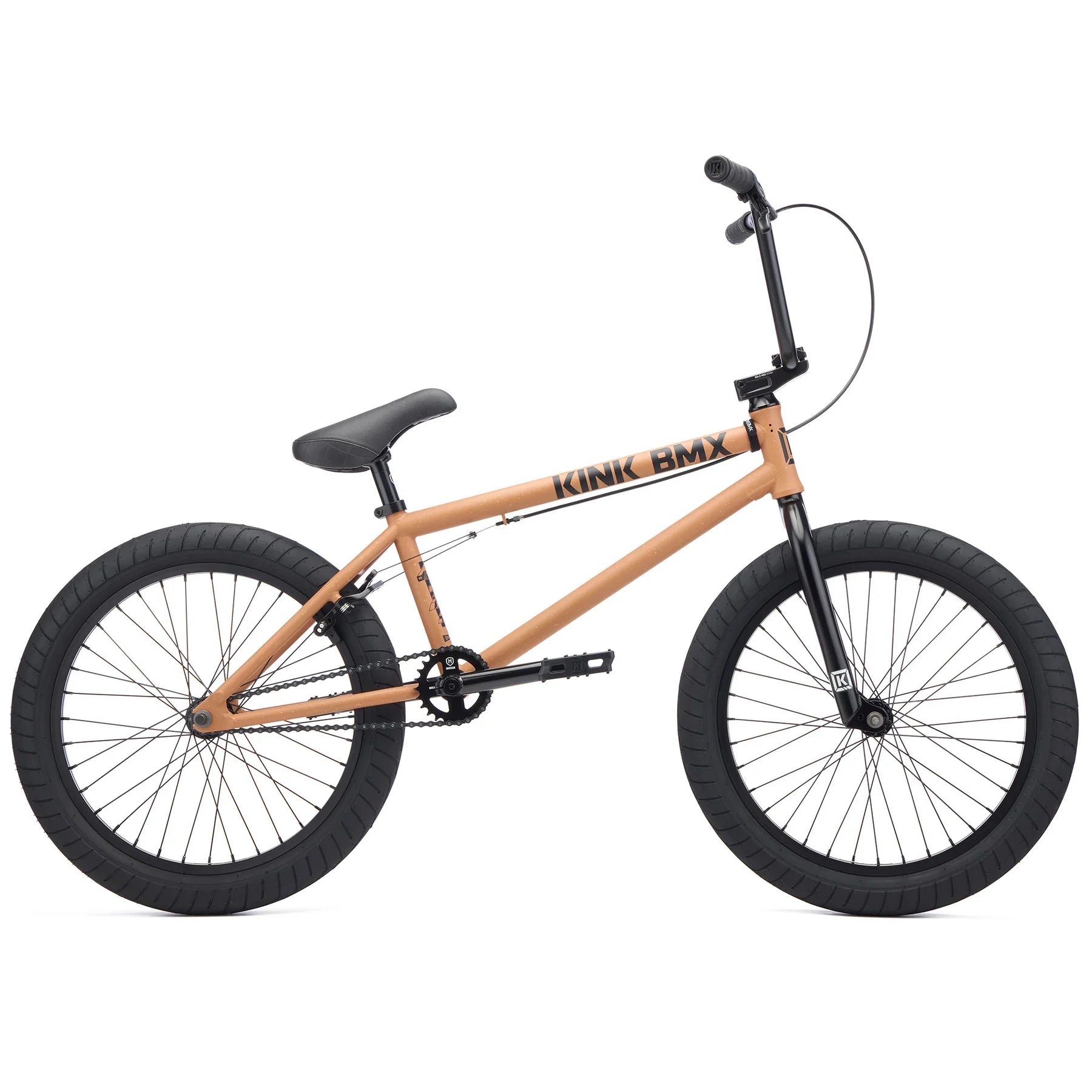

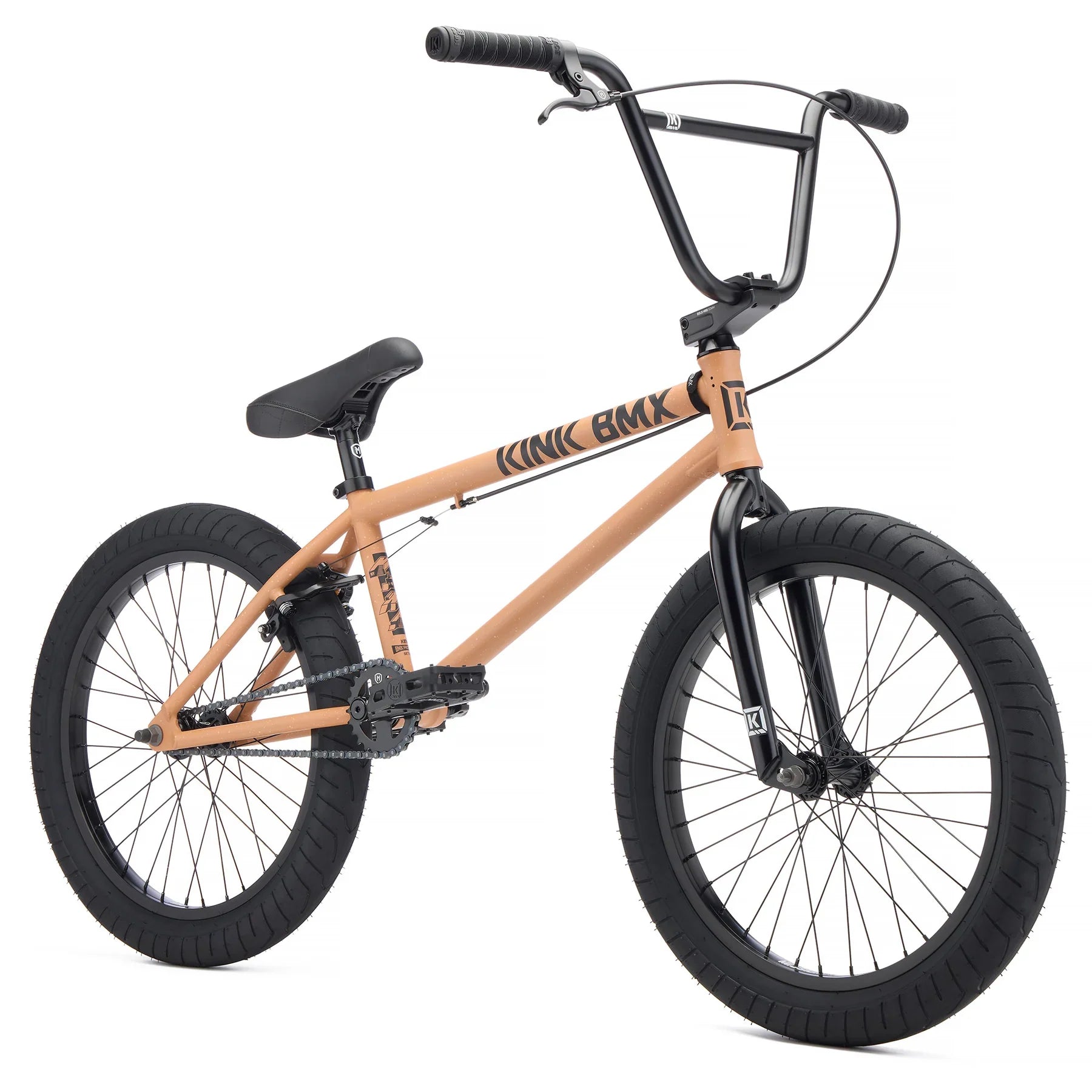

Kink 2027 Setup Complete BMX Bike - Oxide Orange

The all-new Kink Setup is a super versatile bike ready to handle more serious riding. This model features a 4130 chromoly frame front triangle, forks, and handlebars, improving the overall strength and longevity of the bike. Additional upgrades, such as the Stealth seat system, offer more adjustability and modern compatibility. Its moderate-to-modern geometry is also great for all types of riding. The Setup is available in Iridescent Black and Oxide Orange colorways and is also offered in an XL size for taller riders.

Features:

• Frame: Kink Setup 4130 Chromoly Front Triangle
• Fork: Kink Circuit 4130 Chromoly Steerer, Tapered Fork Legs
• Bars: Kink T900 9" 100% 4130 Chromoly
• Grips: Kink Ace Flangeless
• Stem: Kink Bold HRD 50mm
• Headset: Mission Sealed Integrated (41.8 x 45)
• Brake Lever: Mission Token
• Brake Cable: Mission L3 Linear
• Brakes: Mission Cease V2
• Cranks: Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline
• Bottom Bracket: Sealed Mid 19mm
• Pegs: N/A
• Pedals: Kink Hemlock
• Chain: Mission 410
• Sprocket: Mission Breach 25T
• Seat: Kink Plymouth Stealth
• Seat Post: Mission Stealth
• Seat Clamp: Mission Slim Clamp
• Front Hub: Mission Covert Unsealed 3/8" Axle
• Rear Hub: Mission Engage Sealed Cassette 14mm
• Driver: 9T
• Rims: Mission X7
• Tires: Mission Tracker 2.4"
• Weight: 26lb 14oz

Geometry:

• Toptube: 20.5"
• Chainstay: 13.25"
• Headtube: 75°
• Seattube: 71°
• Standover: 9"
• BB Height: 11.6"
• Fork Offset: 30mm
