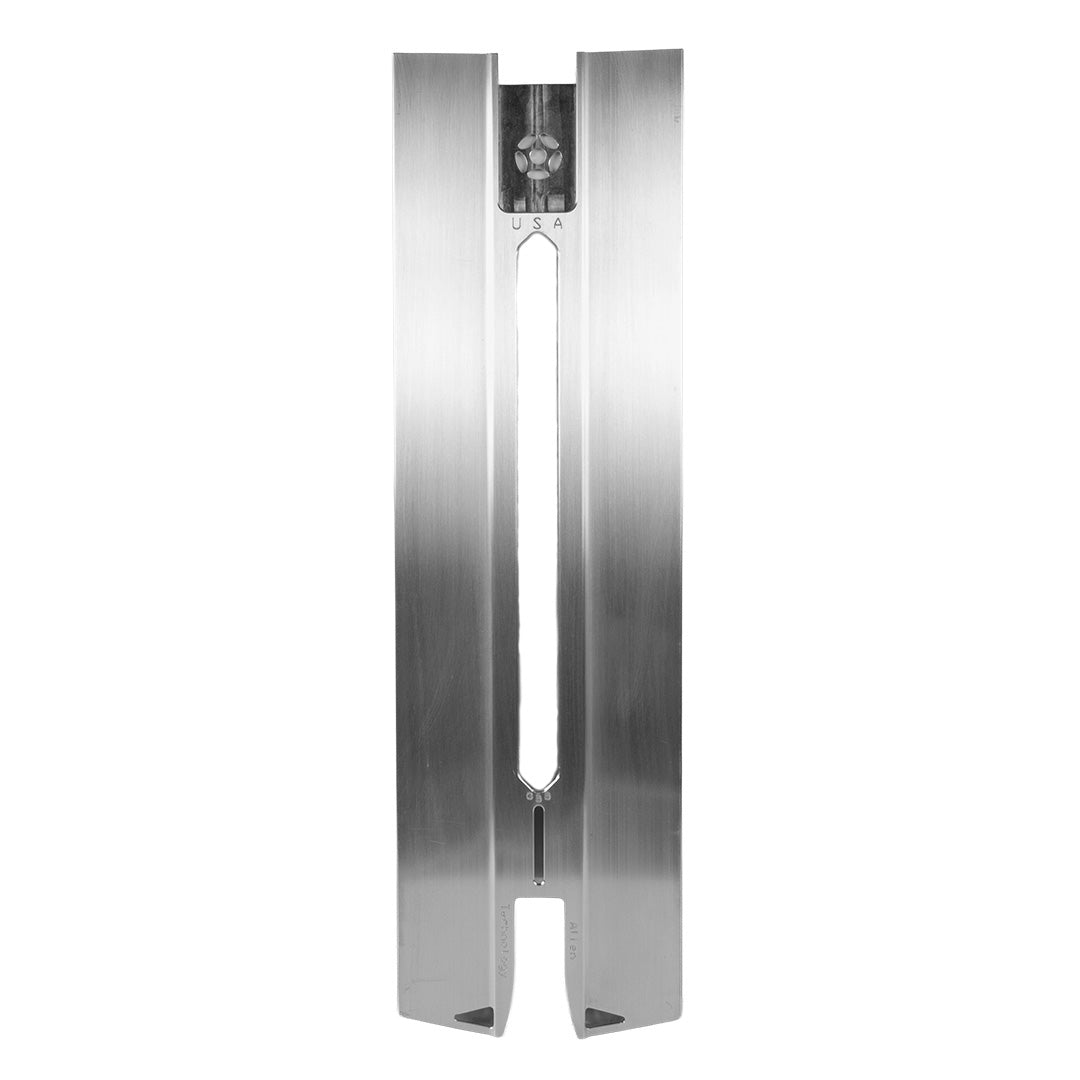

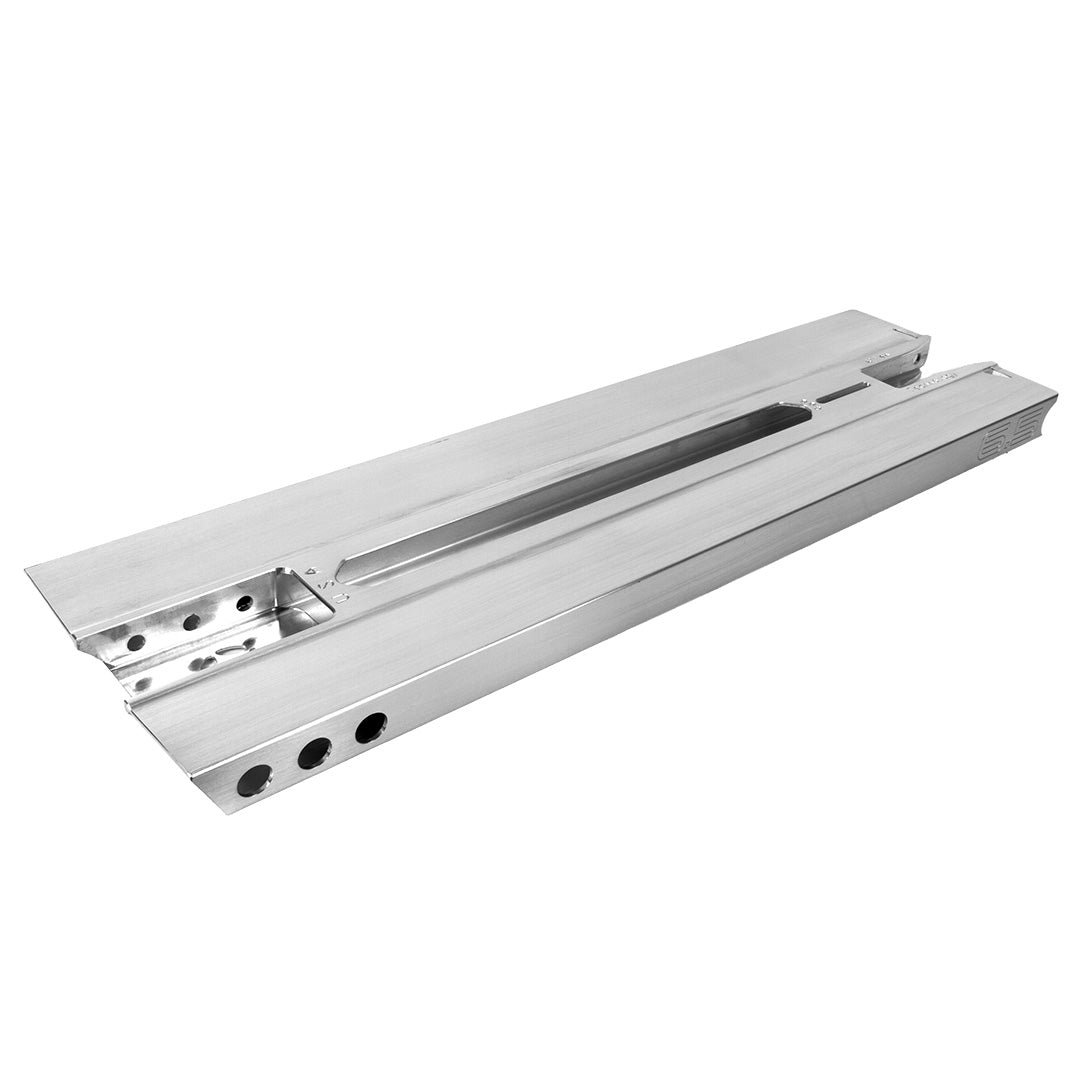

Proto Ares-Lite TDI DEX 6.5″ x 22.5″ - Raw

The PROTO ARES-Lite is the TDI solution for the Mid-Size 6+” Deck Category. Fully compatible with all Past, Present and Future TDI NEX ever made! This is a bolt on upgrade for anyone looking to change up the width or length of their TDI Deck setup for a new riding experience or a simple refresh.

ARES-Lite Specifications

• Width: 6.5″
• Lengths: 22.5″
• Finish: Raw Brushed

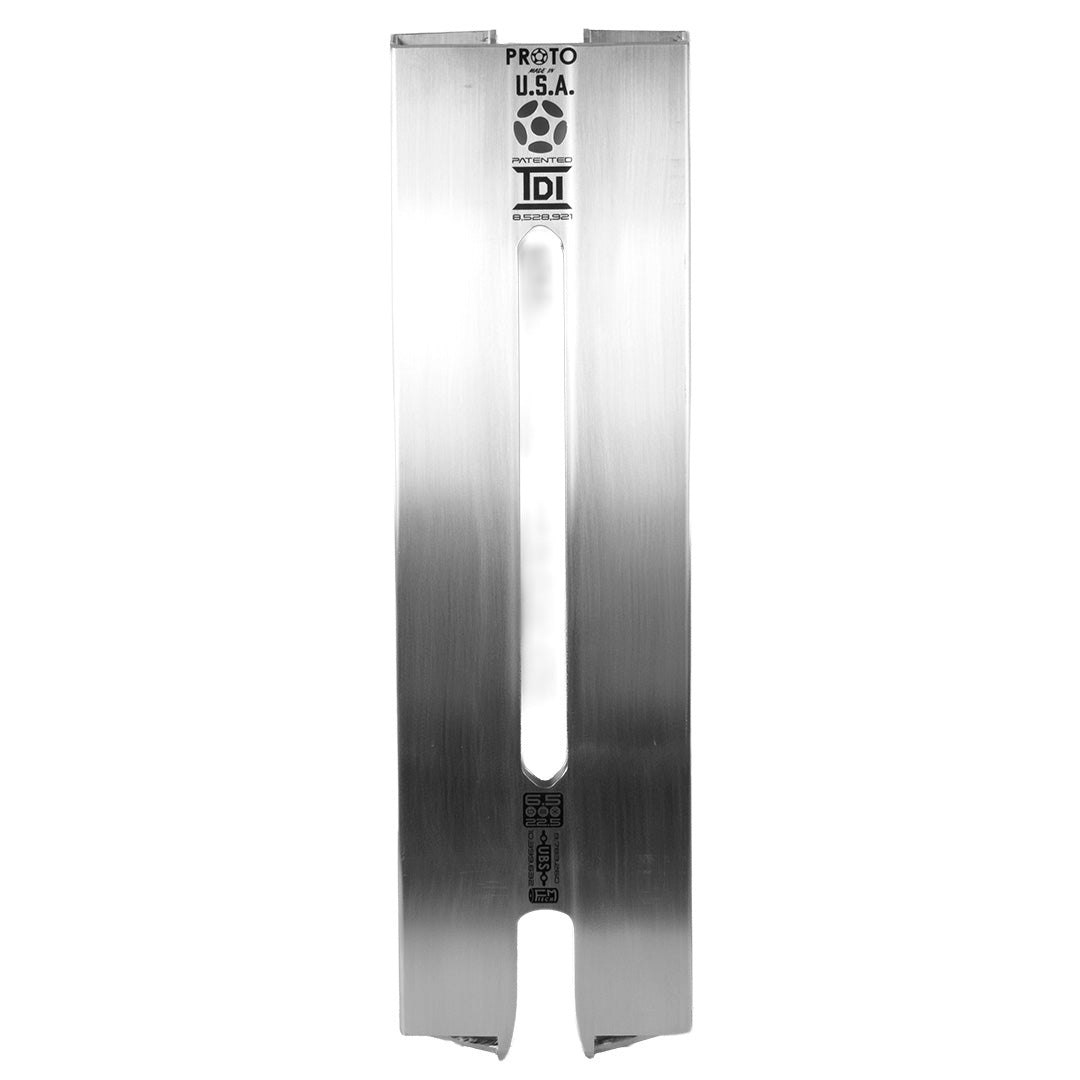

• Marking: Black Laser & CNC Engraving

ARES-Lite Features

• Flush-Mount Drop-Outs; FMtech
• Wider Deck-Ends
• Deeper Drop-Top Ridges

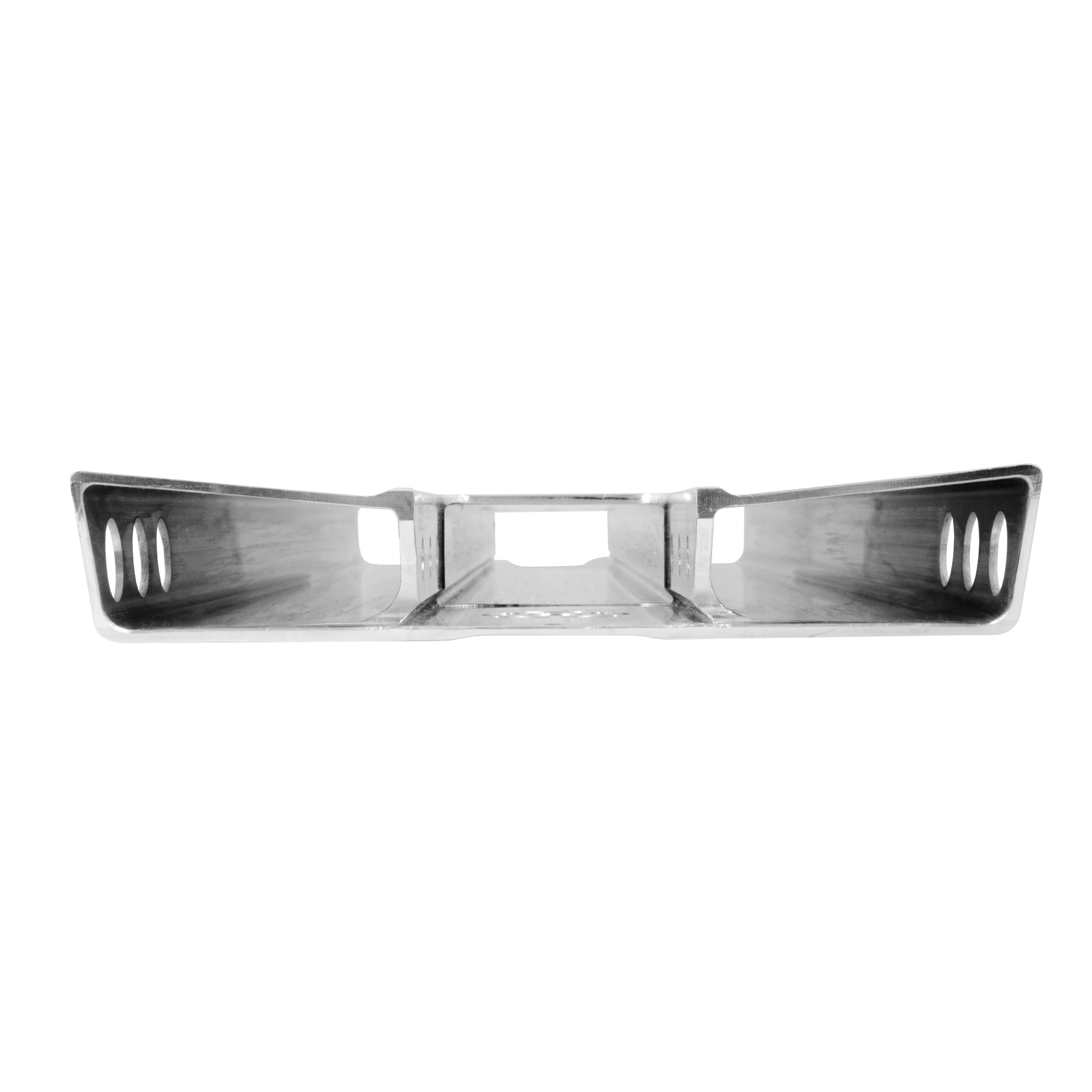

• Reinforced Lower Extrusion Profile to support extra width
• Weight Reducing Deck Cut-Outs (top and bottom)
• Weight Reducing Deck-Ends Cut-Outs
• Manufactured In-House: San Diego, California, USA

ARES-Lite Compatibility

• Necks: ALL past, present & future TDI NEX
• Wheel Width: 24mm & 30mm (Spacers included with Deck-Ends)
• Wheel Diameter: 130mm Maximum
• Drop-Outs: 8mm (Axle included with Deck-Ends)
• Brake/Fender: Center-Mount; Universal Braking System; UBS

ATTENTION: [DECK-ENDS] MUST be ridden with ALL TDI DEX or the Warranty will be voided!

TUNGLOK DECK INTEGRATION (TDI) –

TDI is a system of compatibility. This system was designed so that the Deck and Neck (Headtube) are separate components that are mated together utilizing a tongue and groove system with bolts to keep everything tight; eliminating the need for welding. The TDI system allows for interchangeable “NEX” & “DEX” allowing for unlimited customization of Deck Length, Deck Width and Headtube Angle. When your DEX wear out on a TDI System you only need to replace DEX™ itself instead of the entire Neck/Deck assembly like a welded “one-piece” Deck. NEX have an indefinite lifespan and only need to be replaced if you want to try a different Headtube angle or color.

UNIVERSAL BRAKING SYSTEM (UBS) –

The PATENTED PROTO Universal Braking System (UBS) features a Slide Adjustment Slot making it the world’s first fully adjustable Brake/Fender mounting system, integrated into the Deck itself, that allows for your Brake/Fender size and weight to be minimized while still providing the flexibility for you to run any size wheel on your Deck while also letting you fine tune your Brake sensitivity or Fender position. Nuts, washers and sockets have been eliminated with its integrated threads. Simply loosen the bolts with an Allen key, slide the Brake/Fender to your desired position and tighten it down! UBS technology is featured on all PROTO TDI DEX from the Orion 2 (2014) onwards!

FLUSH MOUNT TECHNOLOGY (FMtech)

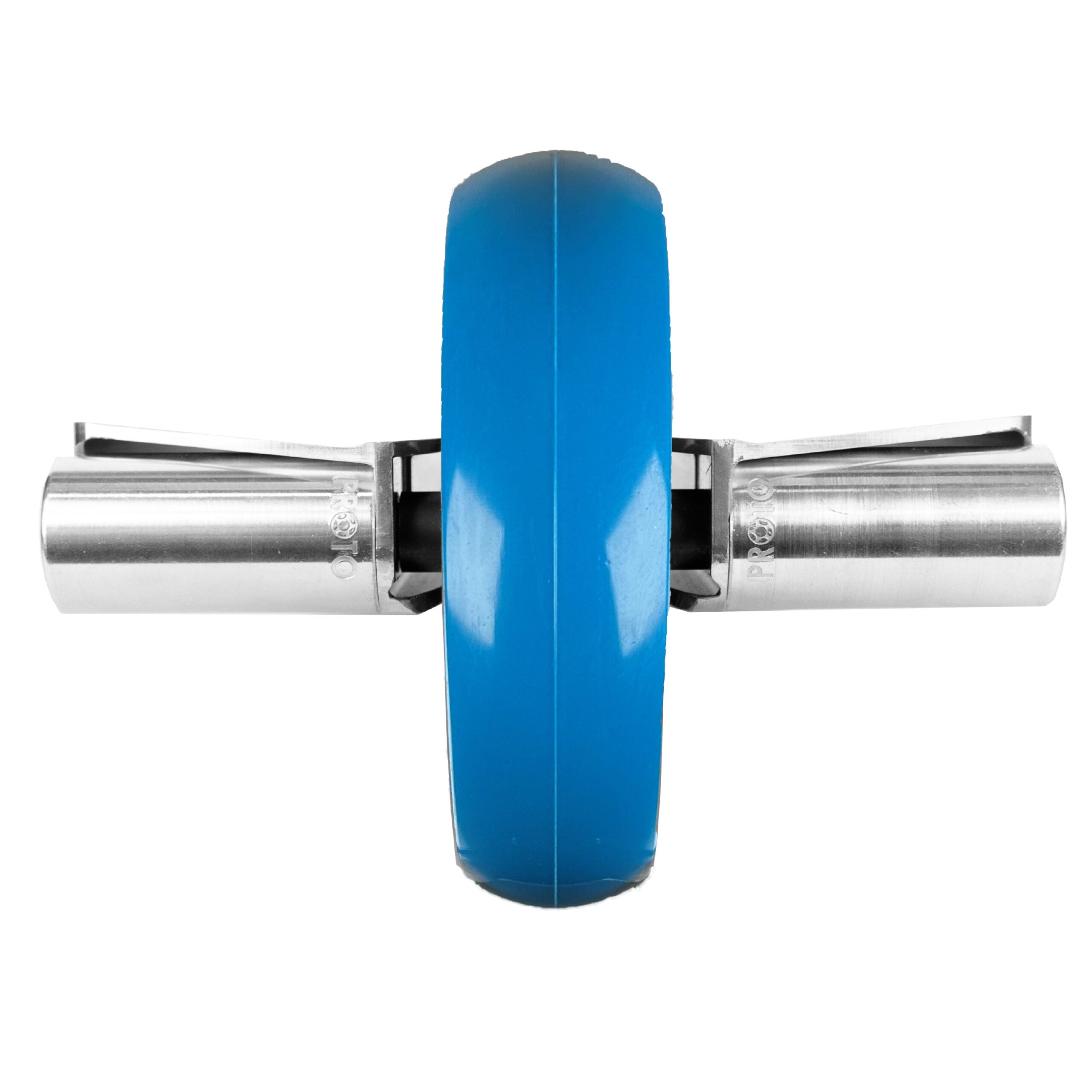

PROTO TDI DEX are the world’s first decks to feature Flush Mount Technology. FMtech allows you to trash your old “cone” shaped pegs which are notorious for bending axles and being incompatible with wider decks and allows you to start using straight Cylindrical Pegs and PROTO Deck-Ends which provide superior reinforcement all the way to your Drop-Outs. With Flush Mount Technology, the Peg/Deck-End Diameter is now standardized so the Drop-Outs of the deck can perfectly contoured to fit your Pegs and Deck-Ends which allows the full width of your deck extrusion to provide an additional level of support for Drop-Out impact.
